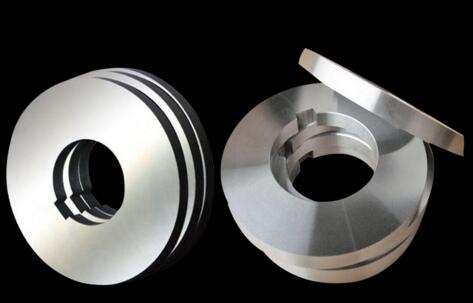

As a trusted manufacturer for round slitter blade for different coil slitting needs, east cutter provides good quality knife and tooling for ferrous and non-ferrous coil slitting. Whether you need a complete slitter tooling package or a small number of replacement parts, we have the products and technical support to meet your needs.

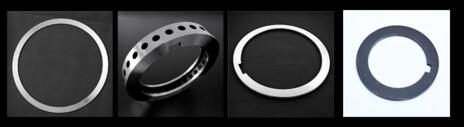

Our slitter knife and tooling for ferrous and non-ferrous include:
- Slitter Knives
- Slitter Spacers
- Slitter Stripper Rings
- Slitter Blades
- Slitter Overarm Disc
- Seperator Disc
- Rotary Shear Blades
- Rotary Slitter Blades
- Rubber bonded spacers
Application of round slitter blade
1. Steel
2. Copper
3. Stainless steel
4. Silicon
5. Alumnimum
6. Cold roll steel
and more application
When you are a machine builder, a slitting center, a coil process and finish center, a slitting factory.
We can supply our round slitter blade.
Here is example we make photo at slitting factory
Round slitter blade are commonly in thicker blade and thiner blade

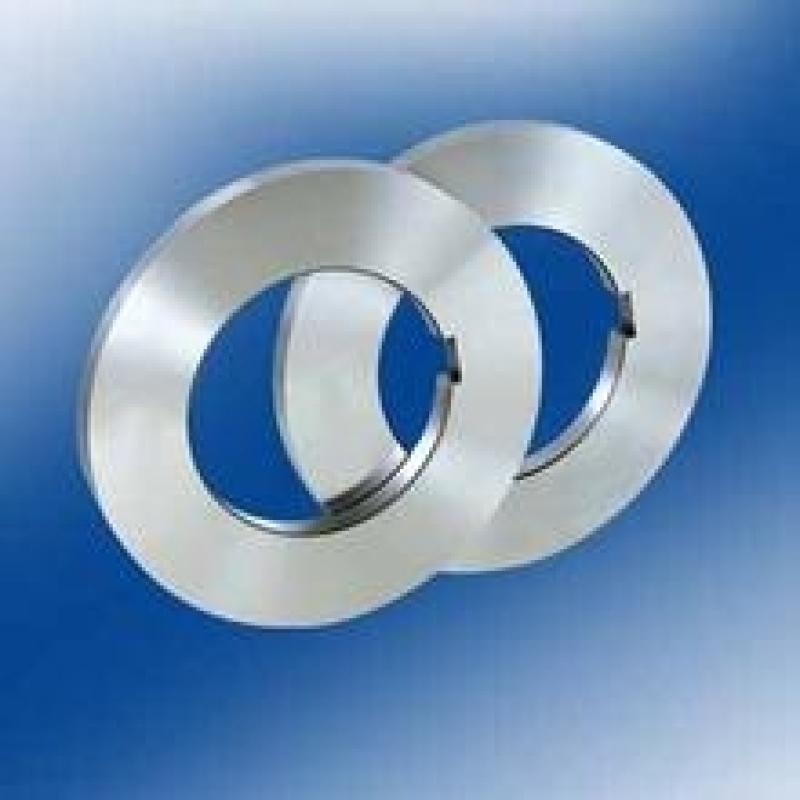

A. Thicker blade / Heavy gauge blade

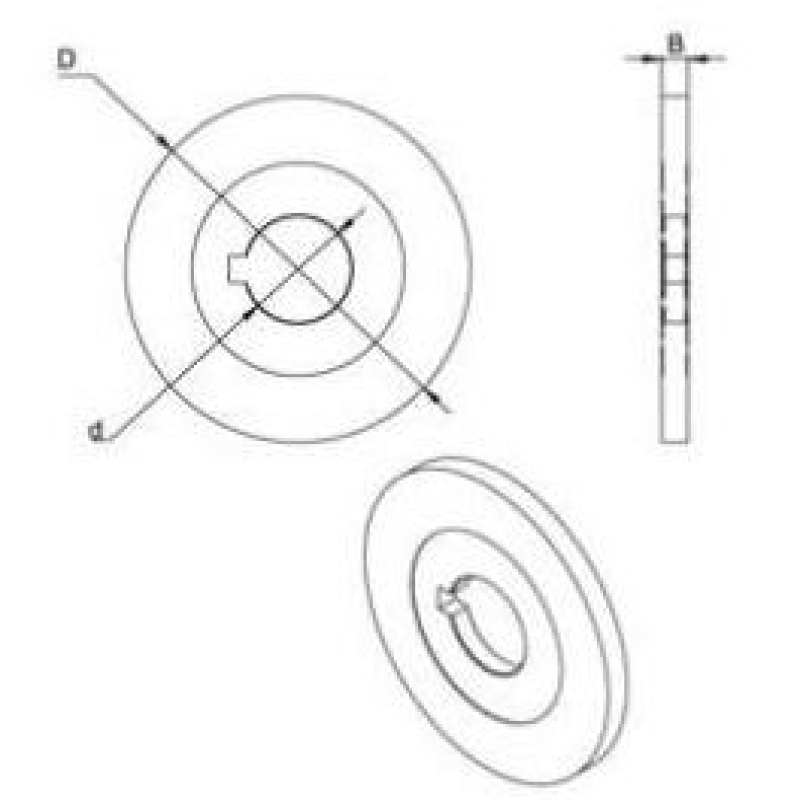

Tolerance for thicker round slitter blade
OD + /- 0.05mm
ID + 0.03mm
Thickness +/-0.005mm
Parralism 0.005mm

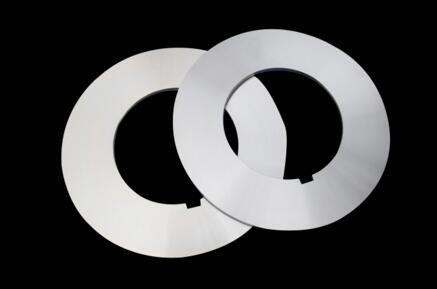

B. Thiner blade
Tolerance for thiner round slitter blade
OD + /- 0.05mm
ID + 0.03mm
Thickness +/-0.001mm lapping finish
Parralism 0.002mm
The think round slitter blade are more difficult because the tolrence required is very high.
We do lapping finish to +/-0.001mm (0.00004") up to customer's requirement.
Material various
We suppply material H13, D2, HSS, Tungsten carbide for rotary slitter blade.
Important notice
1. round slitter blade is used with spacer and rubberized spacer
Spacer

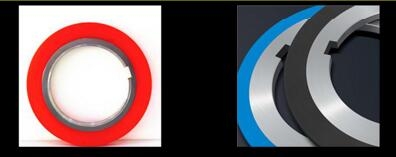

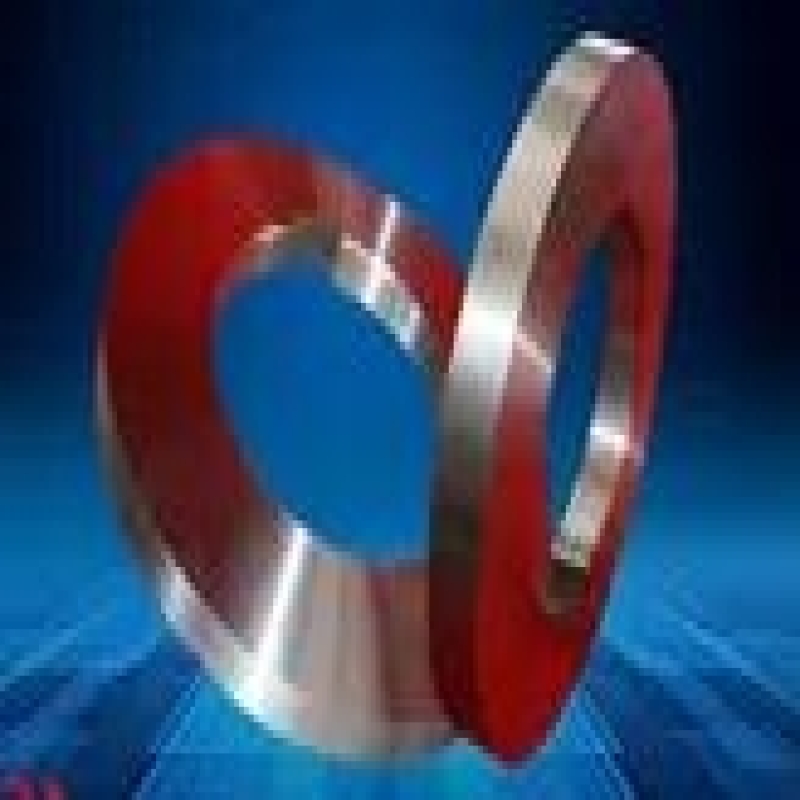

Rubberized spacer / Rubber bonded spacer
Note the tolerance on round slitter blade, spacer, rubberized spacer must be match, otherwise it cause problem.
We supply full range of knife and tooling for ferrous and non-ferrous slitting machines.
2. etching
Since on a slitting line, there are many spacers with different thickness, so clearly etching is very important for identification
More important is etching words cannot be thicker, otherwise it affect the whole thickness of the precise blade
Below are customers who use our rotary slitter knives and toolings
- Integrated steel mills
- Non-ferrous metal processors
- Cold rolling steel mills
- Steel service centers
- Pipe mills
- Transformer band manufacturers
- Metal packaging Companies
- Mechanical engineering companies
Below are machine model, where we can offer replacement rotary slitter knives
- Cincinnati
- Wysong & Miles
- Niagara
- Amada
- Iowa Precision
- Stamco
- Fimi
- B+H
- Frohling
- Bolina
- Herr voss
- Braner
